Wiring of Magnat Classic 360 Car Amplifier

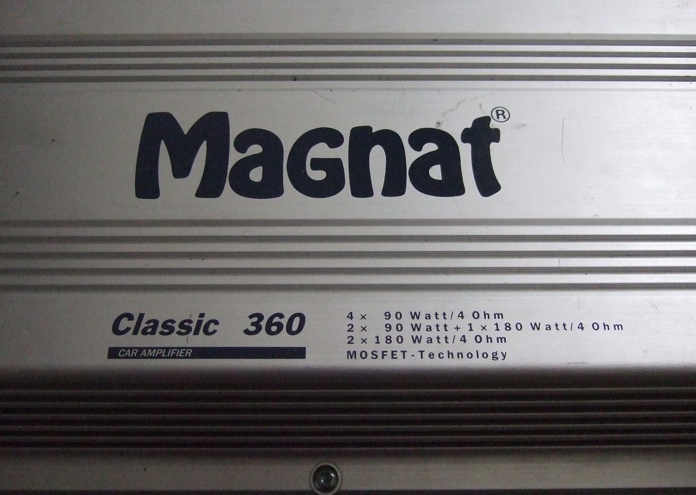

Specifications:

Output:
4 x 90 Watt / 4 Ohm
2 x 90 Watt + 1 x 180 Watt / 4 Ohm
2 x 180 Watt / 4 Ohm

Speaker wiring for 2 Channel Output:

For 2 channel output you have to connect the speakers the following way:

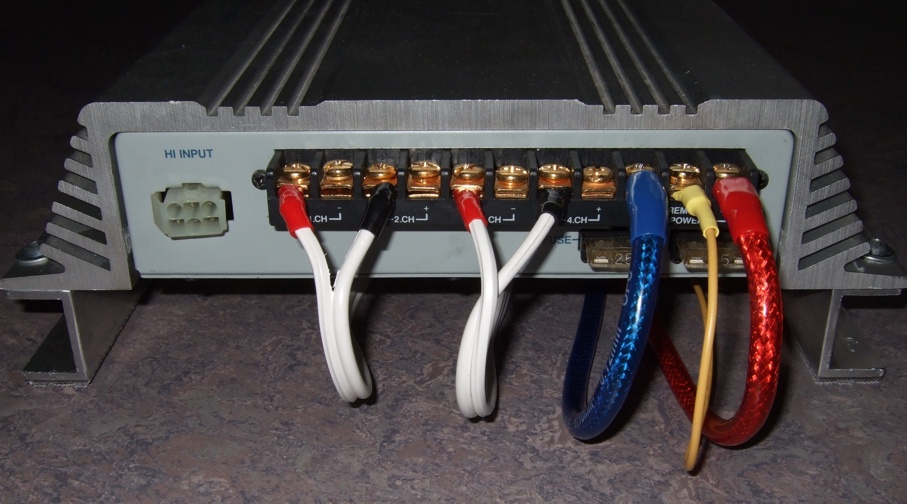

The plus (+) of one speaker (let's say the right channel) goes to the output 1.CH(+) and it's neg (-) to output 2.CH(-). The other speaker (left channel) is connected like plus (+) on output 3.CH(+) and neg (-) on 4.CH(-). All as shown in the picture above.

Input wiring for 2 Channel Output:

For 2 channel output you have to set the "MODE" switch to 2.
Your chinch input plugs need to be connected to "LOW INPUT" 1.CH (let's say the right channel) and the other (left channel) to 4.CH.
